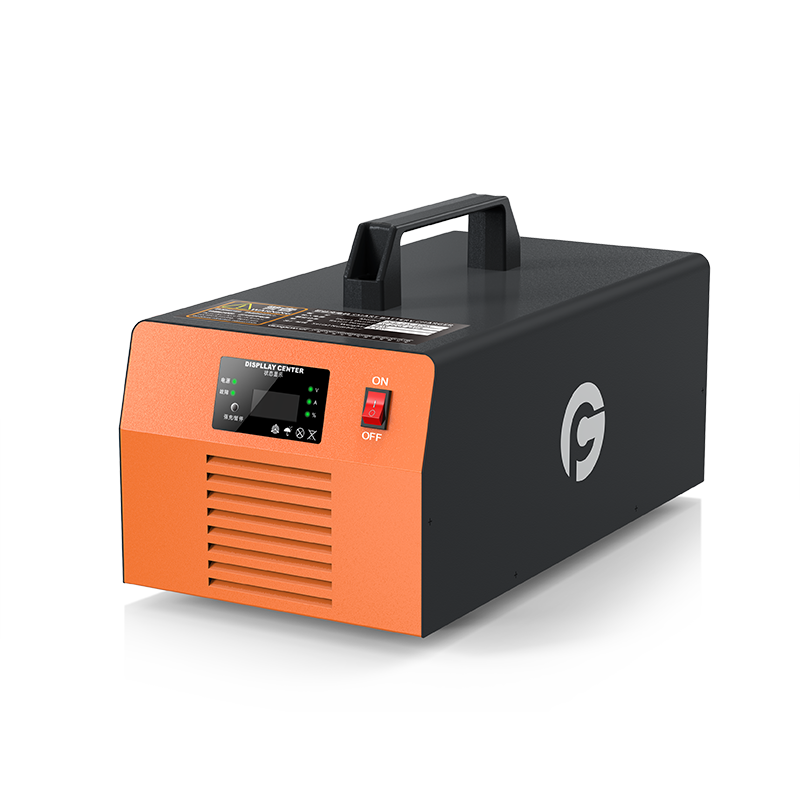

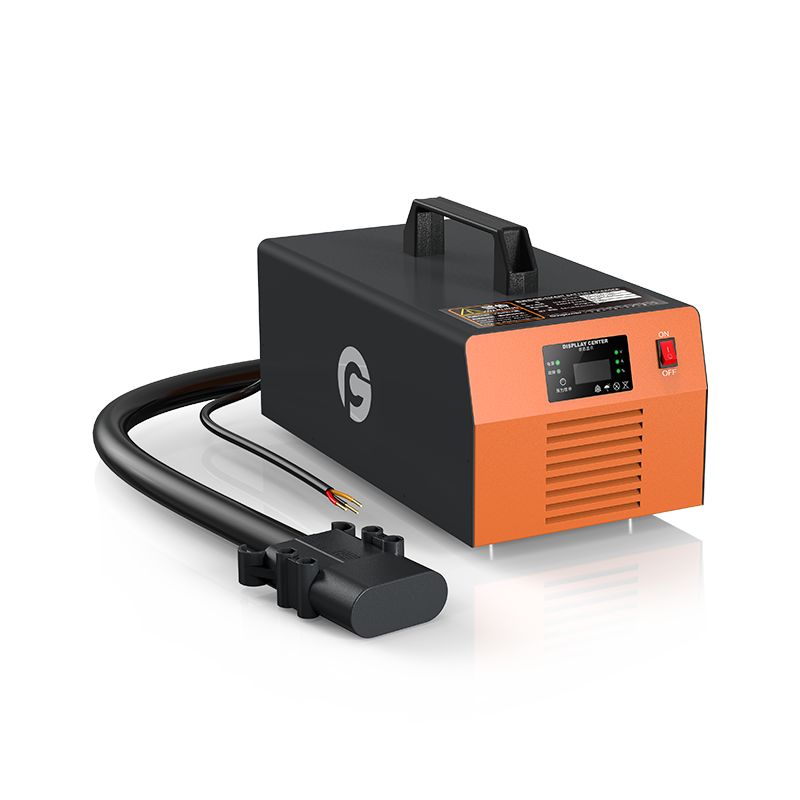

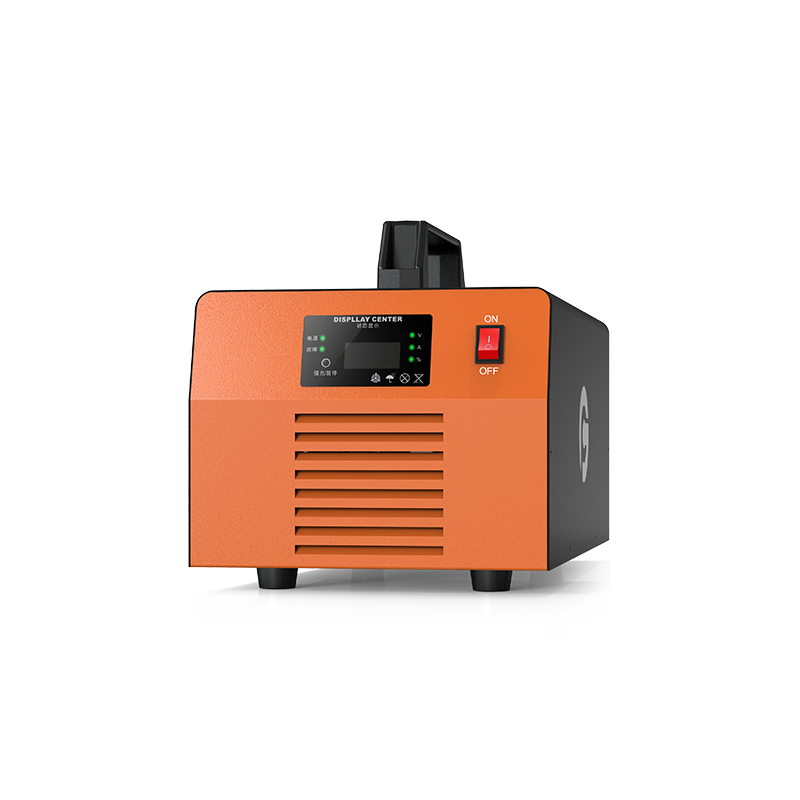

Portable Charger
220Vac input source Maximum power: 3kW Standard configuration: 16A national standard three-prong plug
Product introduction
The portable charger is designed for a 220Vac input source. By configuring different rectifier modules, the product can be customized with output options such as 24V 60A, 24V 100A, 48V 60A, 80V 50A, with a maximum power of 3kW. The AC input is equipped with a 16A national standard three-prong plug, and the DC output is equipped with a 320A REMA male connector. Custom cables can be provided according to customer requirements, and the system can be upgraded to be compatible with the customer's BMS (Battery Management System) protocol.
Key Features
Easy to Carry
Compact size, lightweight, and portable
Can be connected to photovoltaic modules
Smart Charging
Multiple communication methods: CAN/485, enabling constant current and constant power charging functions. Features a force charge button for manual activation.
High Reliability
Comprehensive protection: UVP (Undervoltage Protection), OVP (Overvoltage Protection), OCP (Overcurrent Protection), overcharge protection, reverse connection protection, arc protection, etc.
Module MTBF (Mean Time Between Failures) exceeds 100,000 hours.
Emergency Stop
Prominent emergency stop button for quick shutdown, ensuring the safety of high-power charging.
